특징:

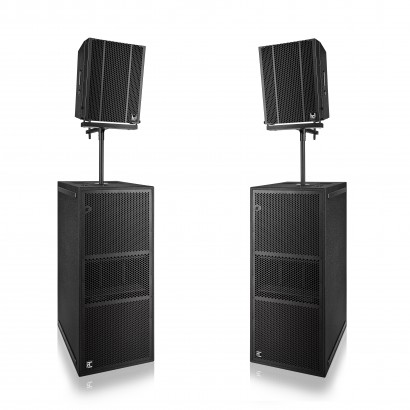

- 2x hd HLS20P HybridLineSource + 2x hd Infra218 Hybrid Subwoofer + 1x hd X4 system amplifier

- live music, DJ and speech up to 1.000 people

- extreme high SPL

- compact dimensions, light-weight and easy handling

- remote surveillance & remote control

- system power: 8.400Wrms

Model	hd HLS20-TourSys1
Principle	Bassreflexsystem / hybride Horn
Transducers	2x 10″N LF 3x 1.4″N HF 2x 18″ long excursion chassis
Crossover	active at 110 Hz
Frequency Range	28 Hz – 20 kHz
Coverage	horizontal 100° x vertical 40°
Dimensions(B x H x T)	400 x 520 x 540 mm (hd HLS20) 1190 x 536 x 670 mm (hd Infra218)
Weight	34 kg (hd HLS20P) 89 kg (hd Infra218) 15 kg (hd X4)
Enclosure	15 mm Multiplex Polyurea-finish black powder-coated steel grille acoustic foam ergonomic transport handles flange adaptor integrated 3-Point FastRig-Rigging M20 thread
Options	RAL-colors outdoor
