특징:

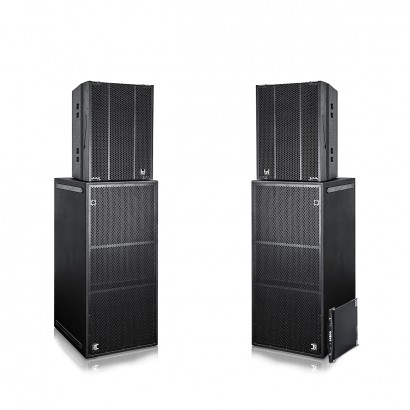

- 2x hd HLS24P HybridLineSource

- 2x hd Infra218 Hybrid Subwoofer

- 1x hd system amplifier X4

- live music, DJ and speech up to 1.200 people

- extreme high SPL

- compact dimensions, light-weight and easy handling

- remote surveillance & remote control

- system power: 8.400Wrms

Model	hd HLS24-TourSys1
Principle	Bassreflexsystem / hybride Horn
Transducers	2x 12″N LF 4x 1.4″N HF 2x 18″ long excursion chassis
Crossover	active at 95 Hz
Frequency Range	28 Hz – 20 kHz
Coverage	horizontal 100° x vertical 40°
Dimensions(B x H x T)	480 x 675 x 560 mm (hd HLS24) 1190 x 536 x 670 mm (hd Infra218)
Weight	45 kg (hd HLS24P) 89 kg (hd Infra218) 15 kg (hd X4)
Enclosure	15 mm Multiplex Polyurea-finish black powder-coated steel grille acoustic foam ergonomic transport handles flange adaptor integrated 3-Point FastRig-Rigging M20 thread
Options	RAL-colors outdoor
