Connectors
XLR
Powerline: 3-pin XLR-F
LAN/PoE1: RJ45
etherCON
Headset: 4-pin
XLR-M (-X4) or 5-pin XLR-F (-X5)
USB: Micro
AB
Microphone
Pre-Amplifier
Headset
Mic Impedance: 200Ω (Dynamic)
Headset
Mic Voltage: 1.7V (Electret selectable)
Limiter: +23dB
Route
to 4-wire output at 0dBu out:
Mic
Gain: 60dB (Dynamic), 45dB (Electret)
Frequency
Response: 300Hz – 10 kHz ± 3dB, contoured for intelligibility
Distortion: <0.2%
THD @ 1kHz
Noise: <-55dBu
(Dynamic), <-65dBu (Electret)
Headphone
Amplifier
Load
Impedance: >32Ω
Output
Level: +12dBu before clipping
Sidetone: -12dB
(selectable)
Route
from a 4-wire input at 0dBu in:
Max
Gain: 0dB
Frequency
Response: 40Hz - 10kHz ±3dB
Distortion: <0.2%
THD @ 1kHz
Noise: -65dBu
Headphone
Limiter: 0dB (selectable)
Device
Power
Voltage: 30-60V
DC
Current
(Max): 0.09A
Power
(Max): 4W
BTU
(Max): 13BTU/hr
This
unit can be powered via:
PoE
- Power over Ethernet: IEEE 802.3af-2003 - Class 1
PSE: 4.0W
DC max @ Power Source Req.
PD: 3.84W
DC max @ Powered Device Draw
Powerline:
Input
Voltage: ±29.5V DC
Input
Current (Max): 0.13A
Powerline
Utilization:

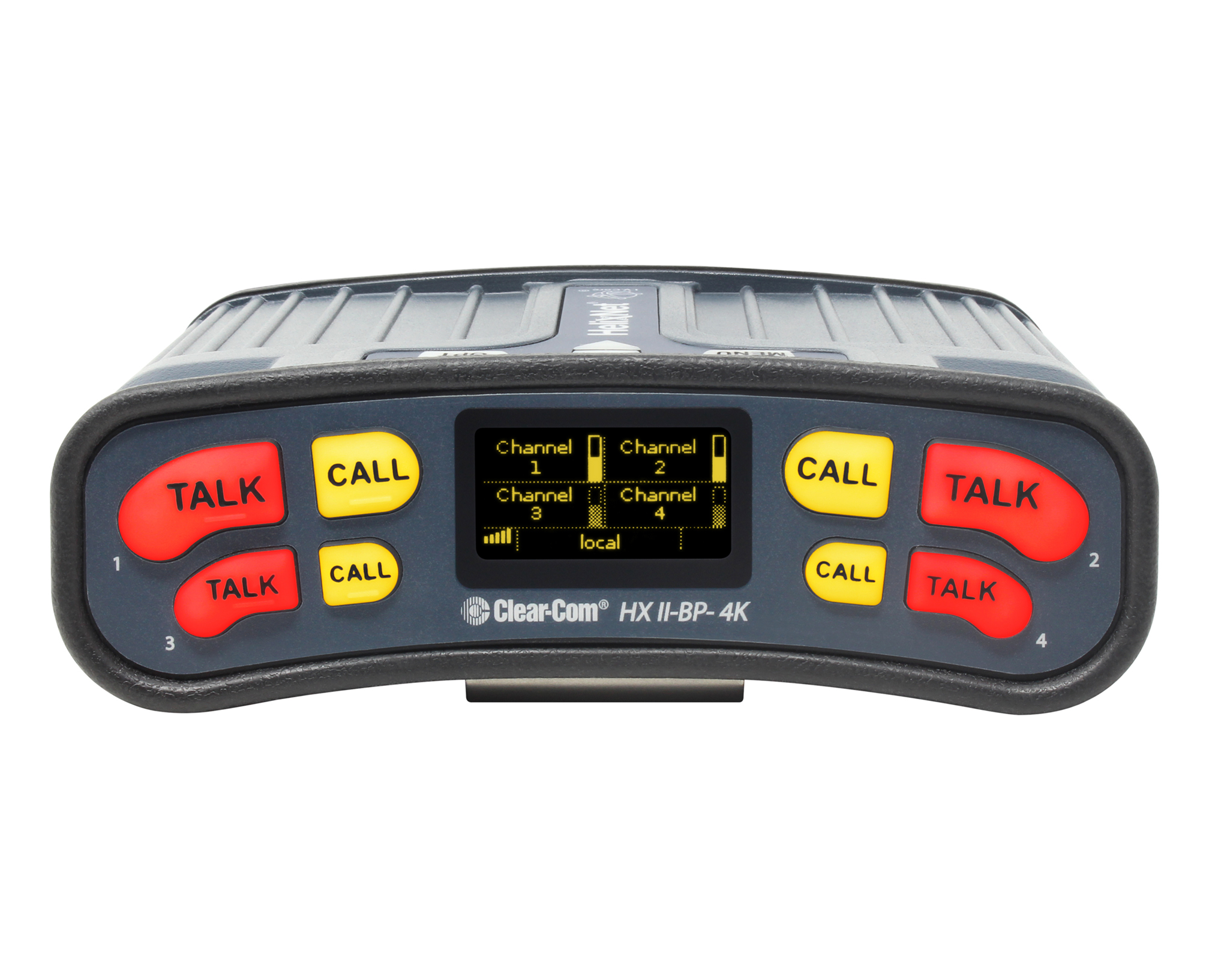

HXII-BP-4K
= 1 beltpack
Note
the maximum Powerline capacity of the HXII-DPL & HMS-4X
Use HelixNet Cable Calculator to validate load
and cable distance.
Environmental
Operating:
32° to +104°F (0° to +40°C)
Humidity:
Between 0 - 90%, non-condensing
IP53
water and dust resistance
Dimensions
3.9
x 5.3 x 1.7in (WxHxD)
99
x 135 x 43mm (WxHxD)
Weight
12.2oz
(0.35kg)
